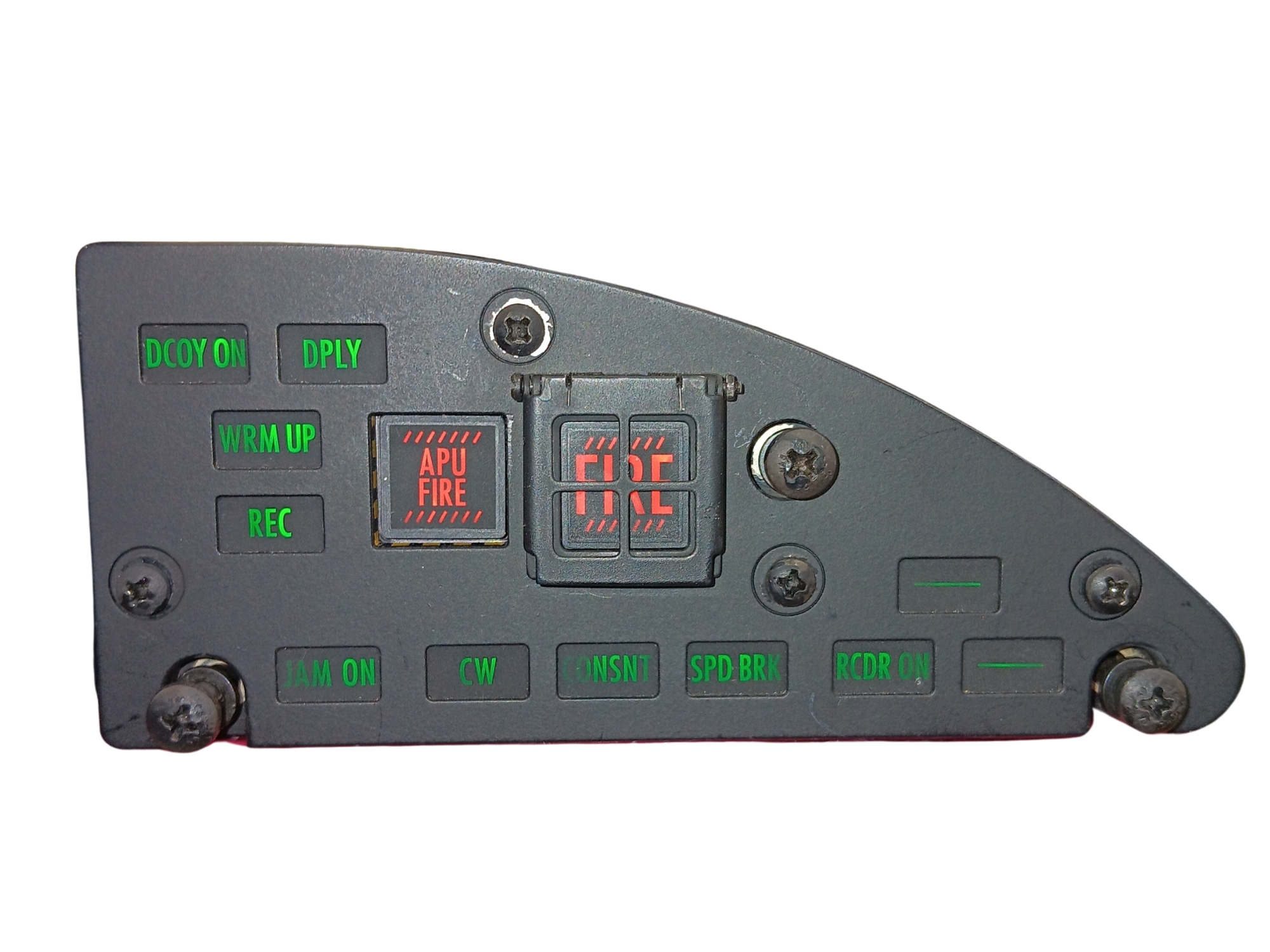

CPC can manufacture fully functional flight worthy control panels with different configurations and aircraft platforms. We offer full functional testing enhanced by the DITMCO testing device with up to 1000 test points of switching. CPC is the OEM for the F-18 (WAT) Warning Advisory Threat control panel. The WAT control panel uses multiple push button switches and illuminated legends, rotary switches and potentiometers which covers a variety of technologies operating within the same platform. This unit has been environmentally qualified to the highest standards, which would allow us the opportunity for (QBS) Qualify by Similarity in the event it is necessary. Unit has been tested IAW MDC A3376, MDC 91B0454, MDC 91B0452 and MIL-STD-810C.
Control Panels
Control Panels
Product Description
Test performed include High Temp, Low Temp, Temp Shock, Temp-Altitude, Rain, Humidity, Fungus, Salt Fog, Explosive, Shock, Vibration and many more. Using high quality components and stringent manufacturing processes makes this specific unit extremely durable. CPC boasts full ESS assembly and 4 light labs but more importantly we have full Ditmco and functional testing capabilities in house

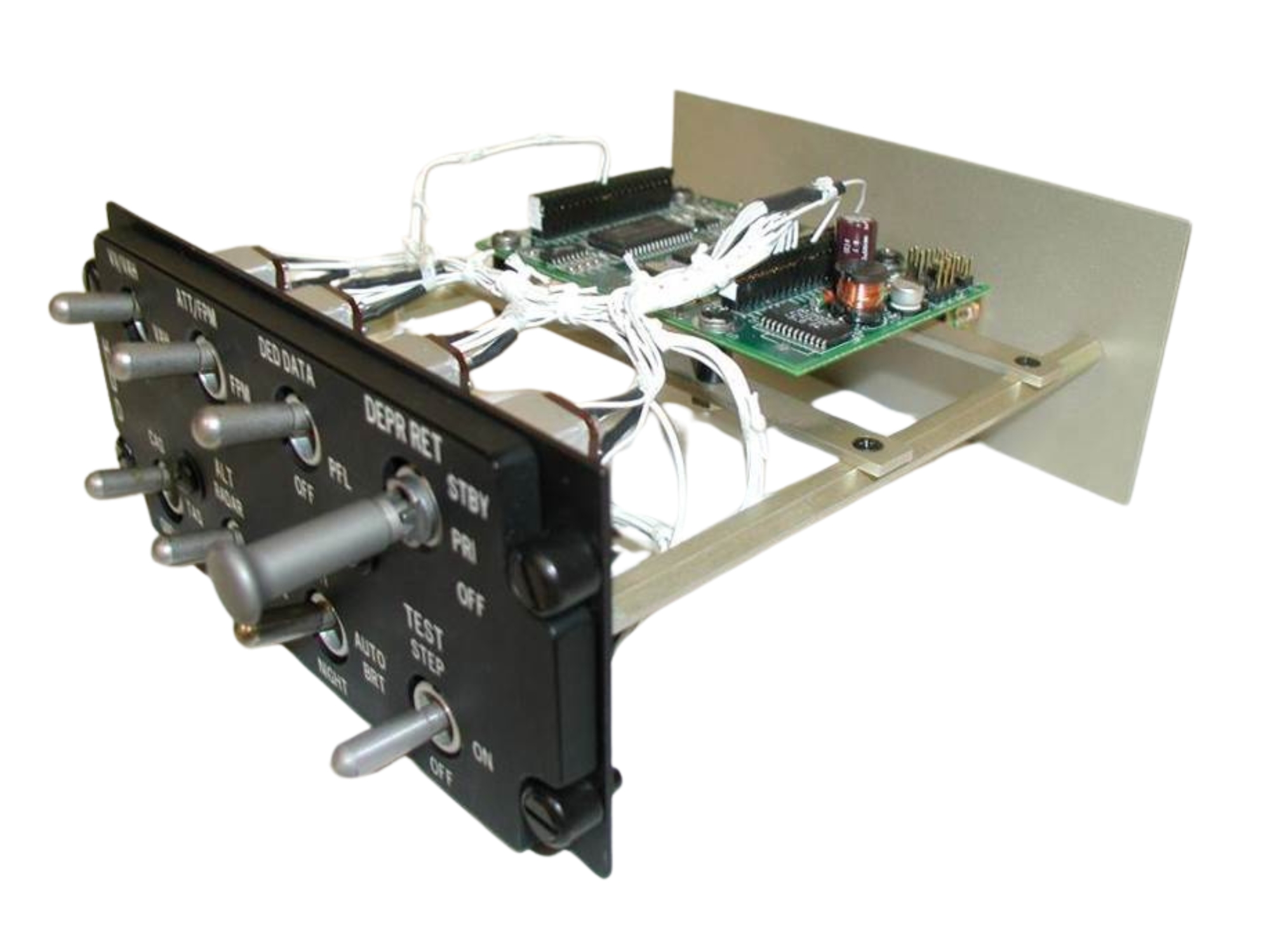

CPC also manufactures control panels for the KC-46. These items are build to print and utilize Type VII illuminated panels with push button and toggle switches. The design is open frame with the light plate attached to the faceplate with the connector plate separated by stand offs and rear mounted Mil Spec connectors.
If you have control panels that you need manufactured to the highest standards, whether its build to print or new design let us know what your needs are, and we can provide a proposal based on your requirements.
